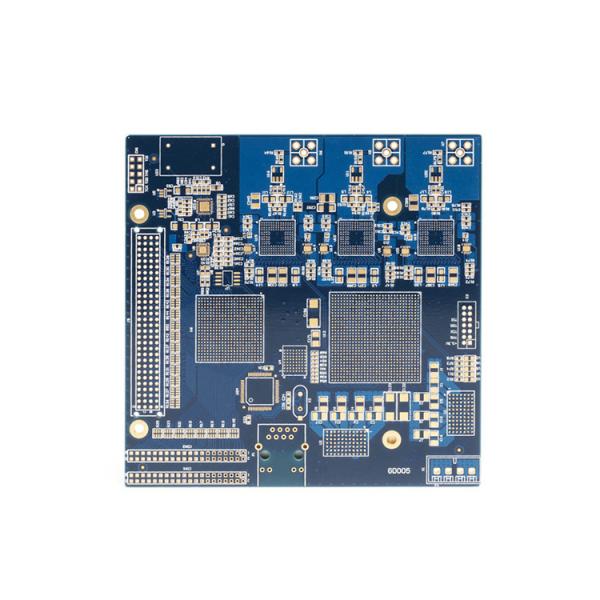

    IPC Rigid PCB

    Ask Lasest Price
    Brand Name : OEM/ODM
    Model Number : SL00710S12
    Certification : UL, Rohs
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5000 Piece/Pieces per Day
    Delivery Time : 7-12 days
    • Product Details
    • Company Profile

    IPC Rigid PCB

    Rigid PCB Fabrication Manufacturer IPC High Quality PCB Fast delivery


    Our PCB boards are of the highest quality and are very durable. So, our PCB offerings include Rigid PCB, Multilayer Flex PCB, and Rigid-Flex PCB. We have a very advanced technological setup that allows us to ensure customer satisfaction. Additionally, we have a dedicated R&D staff and our customer support is always available. So, if you decide to work with us then you will have access to our valuable resources. Hence, you can manufacture electronic products by incurring minimum costs and saving a lot of valuable time.


    PCB Production Capacity


    Layer count1-28L,HDI
    MaterialFR-4, High TG FR4, aluminium, FPC
    Teflon,PTFE (F4B,F4BK), Rogers (4003,4350,5880)
    Max board dimensions800mm*620mm
    Board shapeRectangular,round,slots,cutouts,complex,irregular
    Board typeRigid,flexible,rigid-flexible
    Board cuttingShear,V-score,tab-routed,counter sunk
    Board thickness0.2~8.0mm, Flex 0.1~0.25mm
    Thickness Tolerance±10%
    Min line width / space3mil/3mil
    Minimum Drilling Hole (Mechanical)0.1mm
    Minimum laser hole0.075mm
    Blind Hole/buried plateYES
    Hole Position/hole TolerancePTH:±0.076MM
    NPTH:±0.05mm
    InnerLayer Copper Thickness0.5-3 oz
    OutLayer Copper Thickness0.5-4 oz
    Impedance control tolerance±10%
    Surface finishHASL,Lead free HASL,ENIG,Immersion Tin,Immersion Silver,OSP...
    Solder maskDouble-sided green,red,white,blue,black,etc
    SilkscreenDouble-sided or single-sided in white,black,or negative
    PCB TestingE-test, Flying probe test
    Acceptable File FormatGerber RS-274X,274D,AutoCAD'S DXF,DWG,Pro-E,Ki-CAD
    Quality StandardsIPC-A-600F and MIL-STD-105D CHINA GB<4588>

    Advantages and disadvantages of Rigid PCB board

    Advantages


    These are compact and lightweight. Hence, it is much easier to pack them.
    They are more reliable and durable when dealing with high-end applications.
    These have superior thermal stability. Therefore, these boards are more preferable for aerospace and nuclear applications.
    They show good resistance to chemicals, radiations, and aggressive oils. Hence, we can readily use them in hostile environments.
    We can design them in such a way that they mount from both sides.
    They have a wide range of options available for material selection. Hence, it is very easy to meet customer requirements.
    We can enhance their properties to withstand vibrations, stresses, and shocks. Hence, they are ideal for industrial applications.

    Disadvantages


    The manufacturing process is very difficult. Hence, small firms can often face significant problems.
    The manufacturing requires a sophisticated setup. Hence, significant capital is needed.
    We need skilled and experienced workers for material handling.
    Rigid PCB thickness often tends to show brittleness which can lead to system failure under certain conditions.
    Repair and reflow are extremely difficult and is not practical in most cases.
